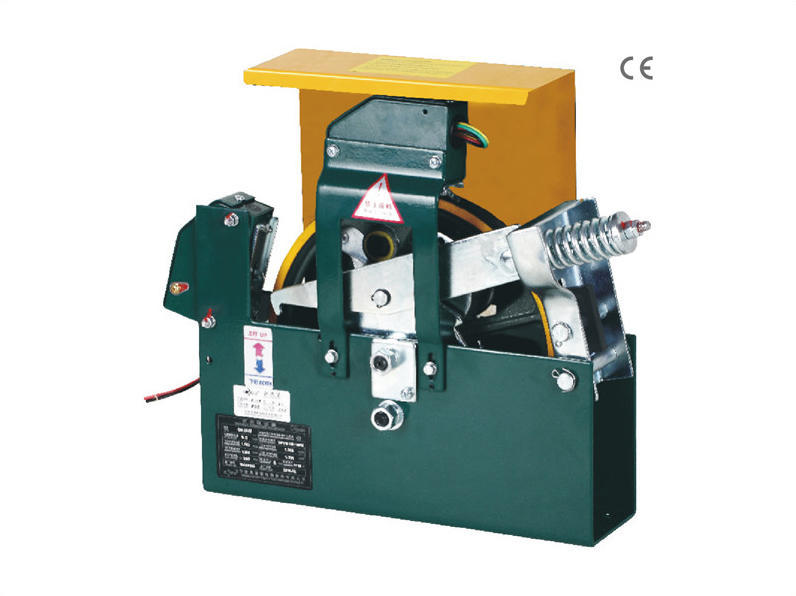

OX-240F Bi-directional Overspeed Governor
- Covered Rated Speeds: ≤0.63m/s; 1.0m/s; 1.5~1.6m/s; 1.75m/s; 2.0m/s; 2.5m/s
- Sheave Pitch Diameter: φ240mm
- Steel Wire Rope Diameter: Standard φ8mm, Optional φ6mm (for partial speed ranges)
- Lifting Force: ≥500N
- Tensioning Device: Standard OX-300, Optional OX-200
- Working Position: Car Side or Counterweight Side
- Upward Control: Permanent Magnet Synchronous Traction Machine Brake, Counterweight Safety Gear, Electromagnetic Triggered Rope Gripper
- Downward Control: Safety Gear
