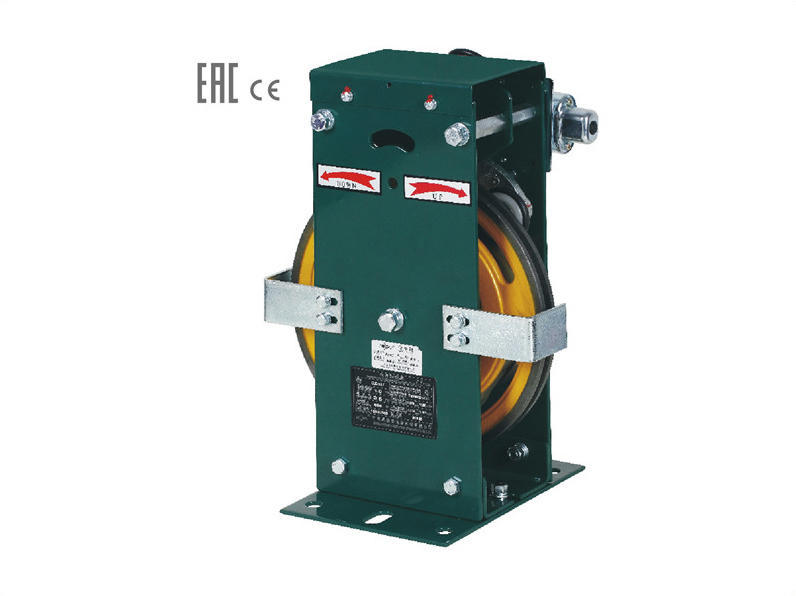

OX-187 Bi-directional Overspeed Governor
- Covered Rated Speeds: ≤0.63m/s; 1.0m/s; 1.5~1.6m/s; 1.75m/s; 2.0m/s
- Sheave Pitch Diameter: φ200mm; φ240mm; φ300mm
- . Steel Wire Rope Diameter: φ6mm, φ8mm (Depends on sheave specification)
- Lifting Force: ≥500N
- Tensioning Device: Standard OX-200, Optional OX-300
- Power Supply Voltage: Standard AC220V, Optional DC24V (for speed ≤1.0m/s)
- Working Position: Car Side or Counterweight Side
- Upward Control: Permanent Magnet Synchronous Traction Machine Brake, Counterweight Safety Gear, Bi-directional Safety Gear
- Downward Control: Safety Gear
- Remote Operation: Supports electrically controlled test operation and electric switch reset; mechanical structure automatic reset
